Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″
Strands SIBERIA XPA SR LED BAR 22″

Strands SIBERIA XPA SR LED BAR 22″

10-32 V
105 W
7150 lm
IP68/69K
Sale price269,90 € Regular price304,90 €
Save 35,00 €

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
GTIN: 7323030194185SKU: 809412A

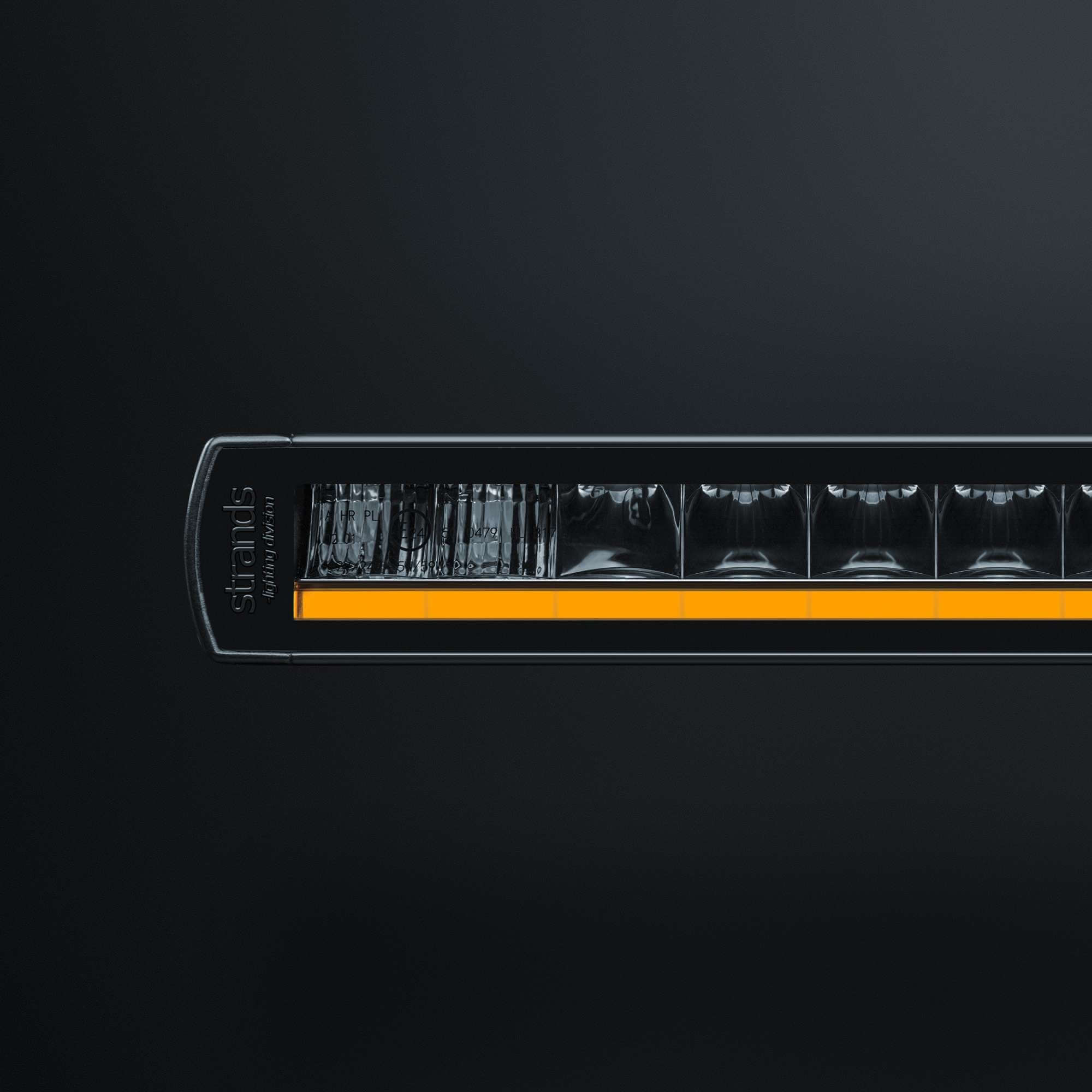

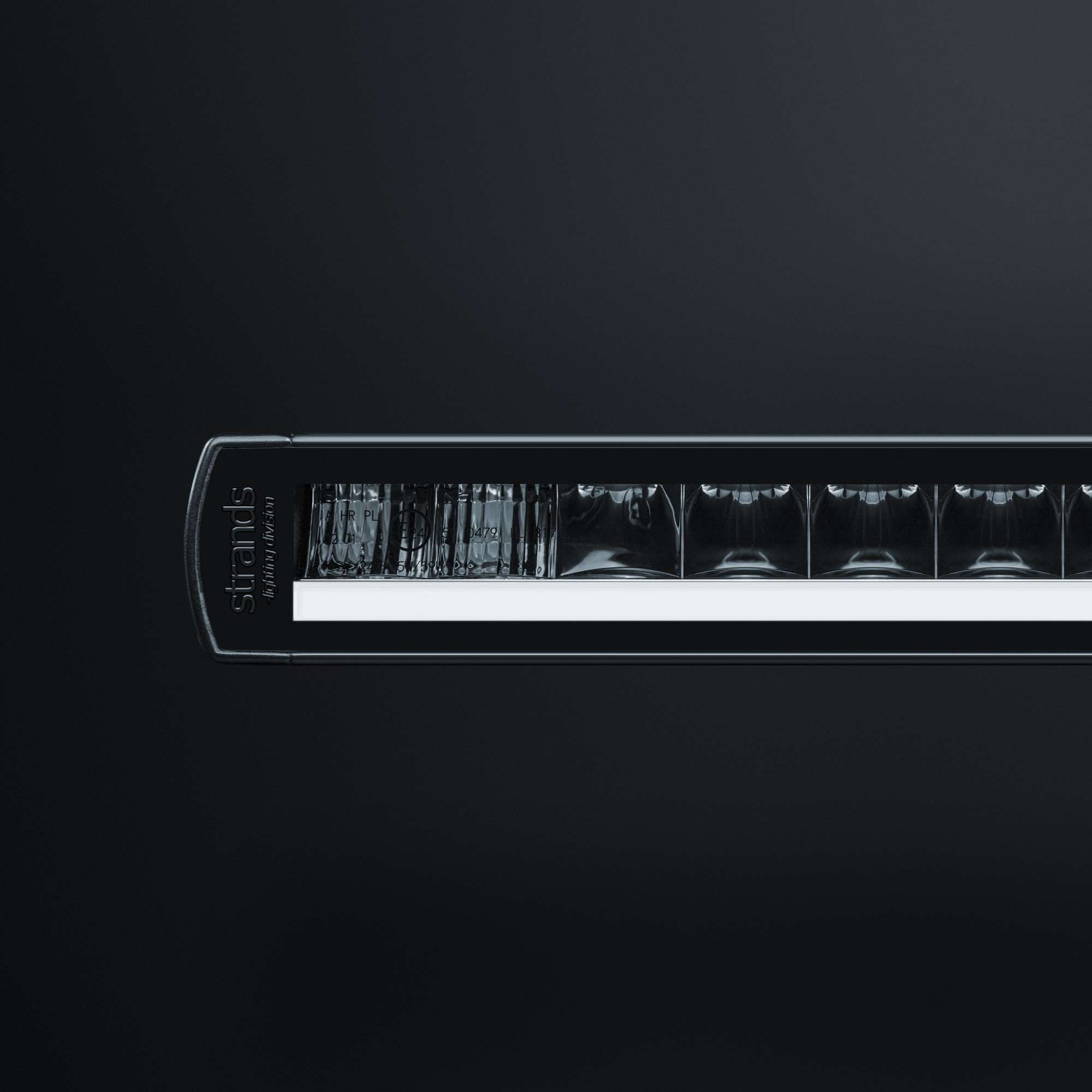

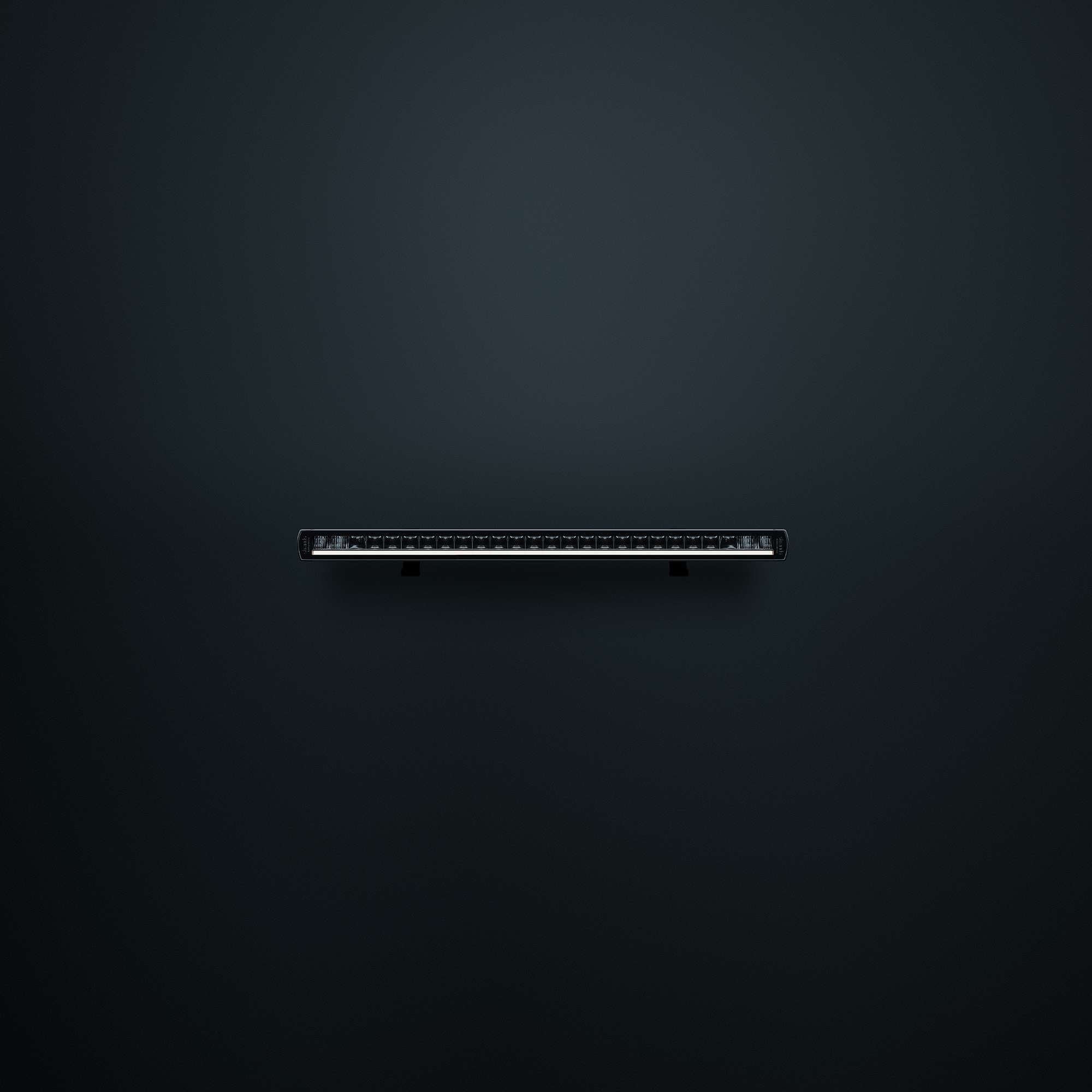

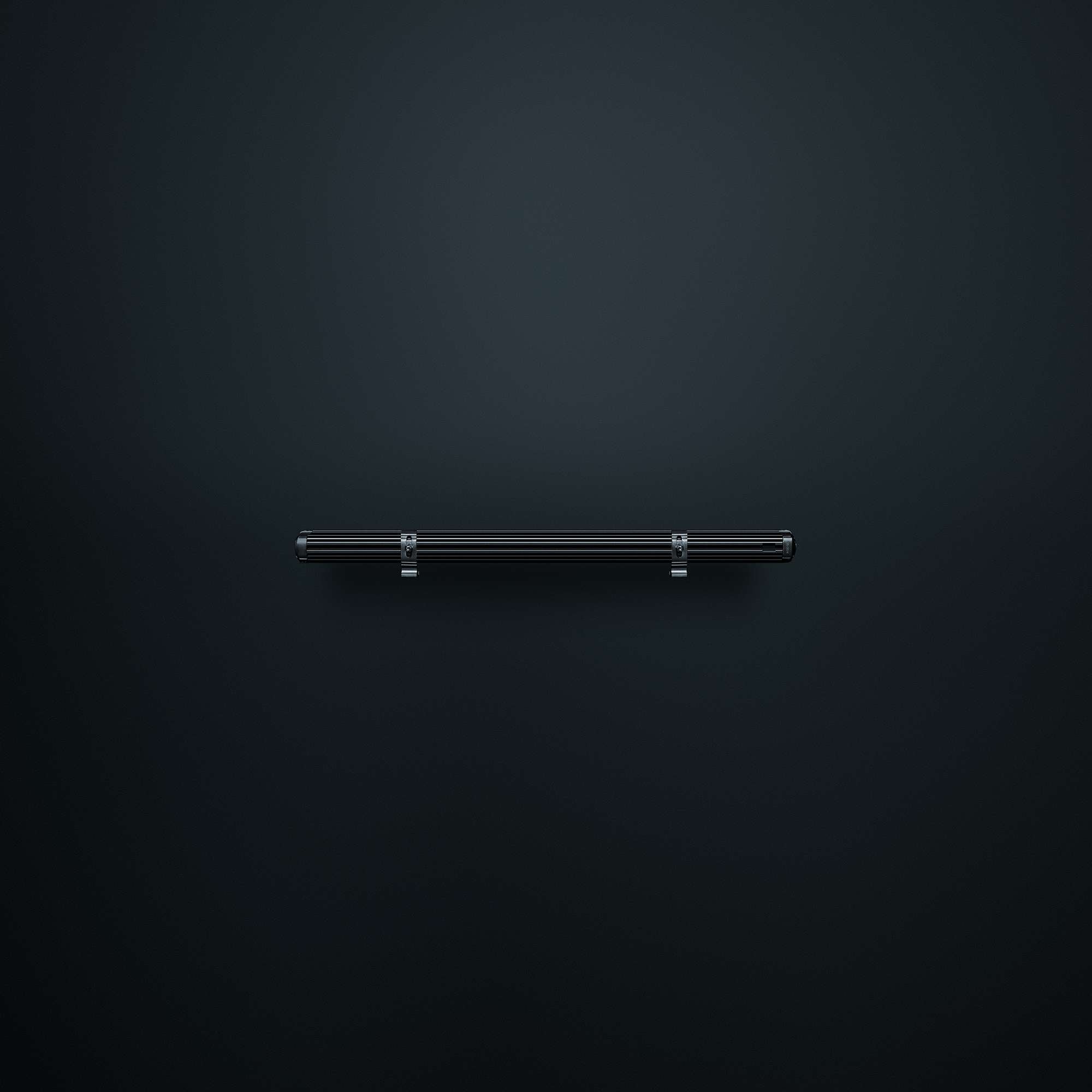

The Siberia XPA SR LED Bar 22" combines powerful performance with a modern design and a dual-color position light in white and amber. It provides clear illumination while giving your vehicle a distinctive look.

In Xperience mode, it delivers over 7,100 lumens and reaches a distance of more than 600 meters – around 65% more performance compared to previous models. The optimized beam pattern ensures excellent forward visibility, while the 5700 K color temperature offers bright and crisp lighting.

A special highlight is the integrated Hello function: by flashing your high beam twice, a dynamic signal is activated via the position lights.

Durable materials, a robust lens, and a solid housing make the LED bar highly resistant to vibrations and demanding conditions. With an IP68/IP69K rating, it is optimally protected against water and dirt.

Installation is simple via a 550 mm cable with a DT-4 connector. The LED bar is E-approved according to ECE R148 (R7), R149 (R112), and ECE R10, making it road-legal.

As with all Strands products, you also benefit from a 3-year warranty.

Unit
PCS
Voltage (DC) (V DC)
10-32
Theoretical effect (W)
102
Consumption (W)
105
Functions
Xperience modeE-approved modeWhite Pos.Amber Pos.Hello function
Consumption specific function
X-modus 102WE-modus 25WWit pos. 9.5WAmber pos. 9.5W
Theoretical lumen (lm)
8000
Actual lumen (lm)
7150

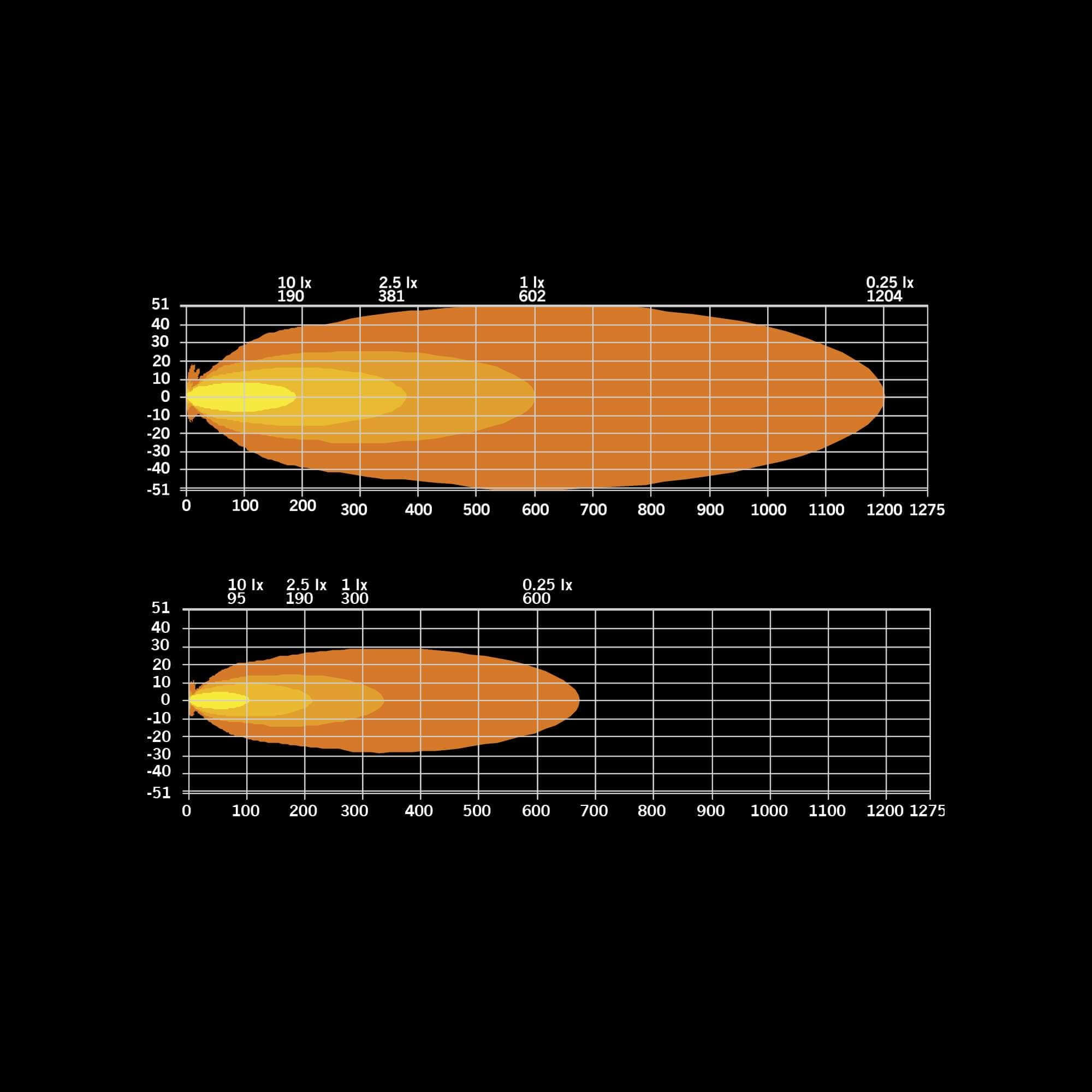

1 lux @ (m)
602
Color temperature (K)
5700
Beam pattern
Extended Beam
Beam angle (°)
14.4
Connection
DT-4-PIN
Cable length (mm)
550
Color housing
Black
Color lens
Clear
Color LED's
Wit | Amber

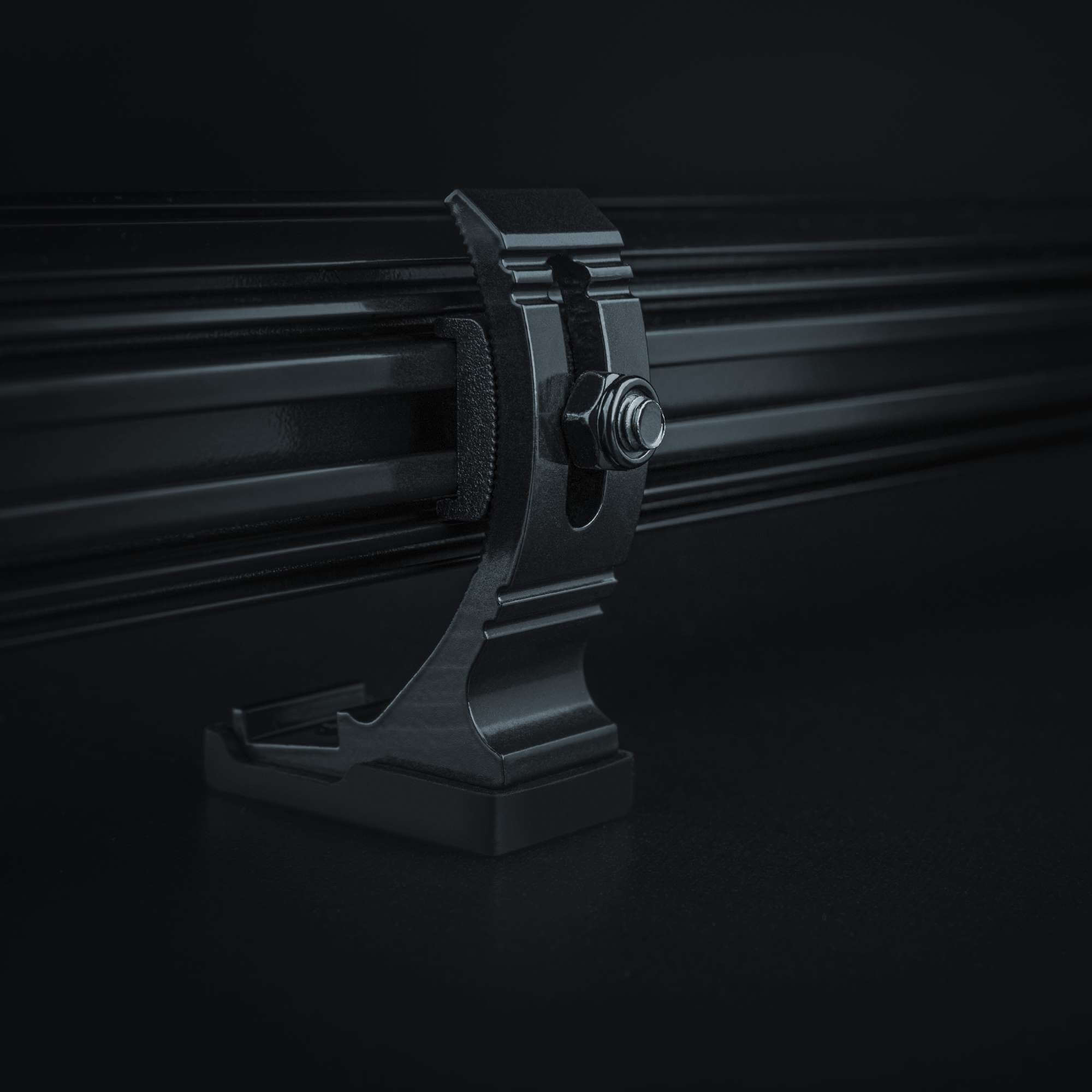

Material bracket
Aluminum alloy
Material housing/chassi
Aluminum
Material lens
Polycarbonate

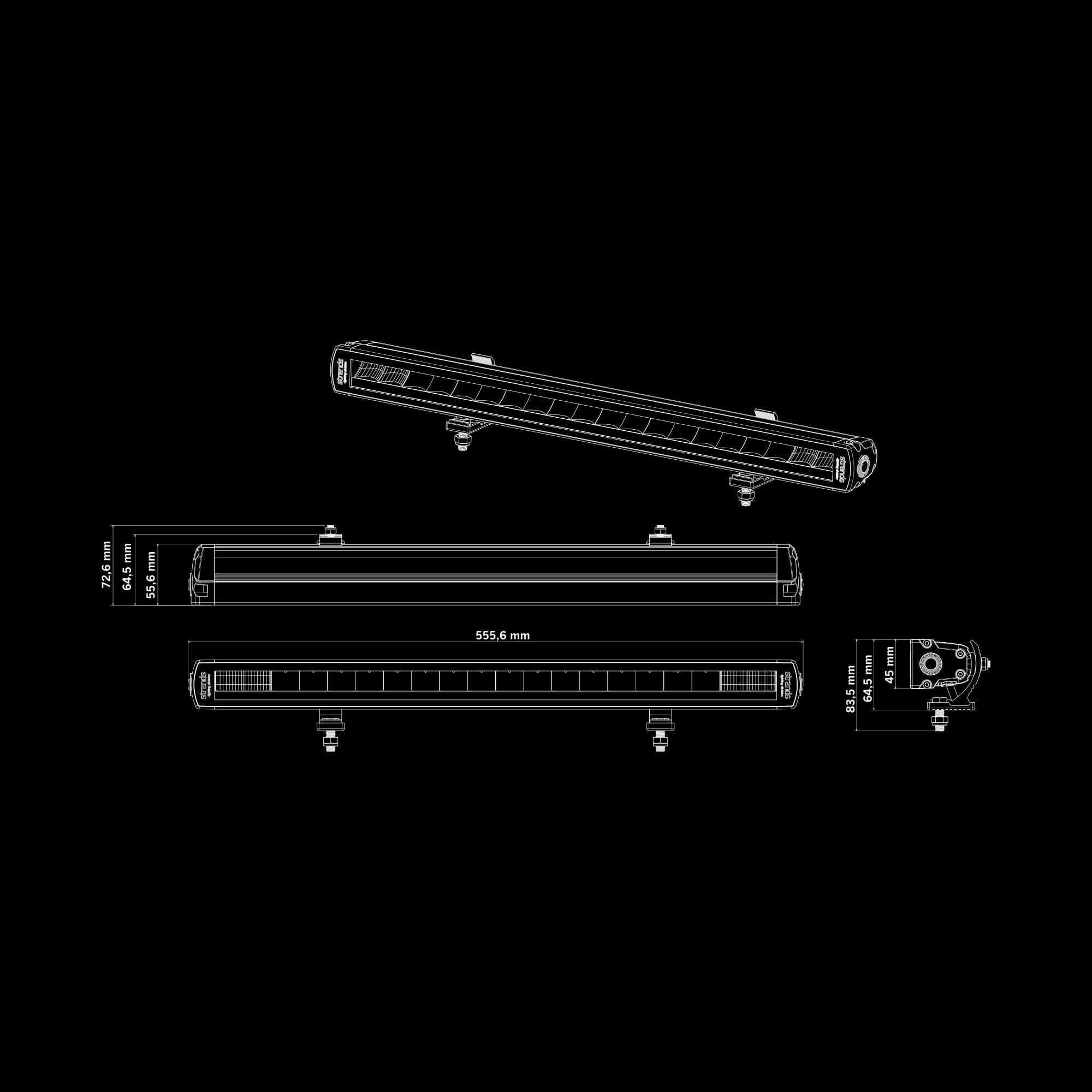

Length (mm)
555.6
Depth (mm)
55.5
Height (mm)
45
Height including bracket (mm)
64.5
Weight (kg)
1.8
IP-class
IP68/69K
Operating temperature (°C)
-35 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

Cable assignment

Black
- (Negatief)
Red
+ (Positief)
White
+ (Positief) wit positielicht
Yellow
(+) Amber zijmarkeringslicht
Manual Product sheet
